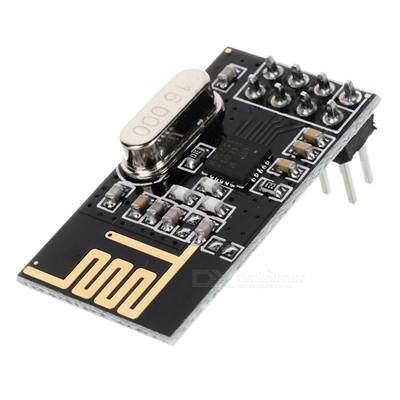

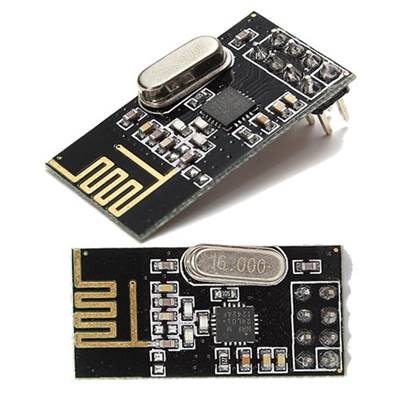

NRF24L01 2.4GHz Wireless Transceiver
2Mbit/s, 1Mbit/s, 250Kbit/s, three selectable transmission rate.
MultiCeiver hardware and six receiver functions.
2 Mbit/s make high-quality VoIP is possible.
+/- 60 ppm crystal.
Only require an external inductor in the antenna matching
There is no need multi-layer PCB.
5V tolerance level inputs.
Improved ShockBurst and the serial interface can be easy to connect with a variety of low-cost MCU.
There si no need SPI interface with the MCU.
Received in the rate of 2Mbit/s, the peak current is 12.5mA.
When the rate of 2Mbit/s @ 0dBm output,the peak current is 11mA.
Power-down mode, power consumption is 400nA.
Standby mode, power consumption is 32uA.
130us fast switching and wake time.
With voltage regulator:Oltage regulators on board.
Built-in 2.4GHz antenna,support up to six channels of data reception.
Low operating voltage: 1.9-3.6V
