nRF24L01 + PA

Giá: 90.000₫ Còn hàng

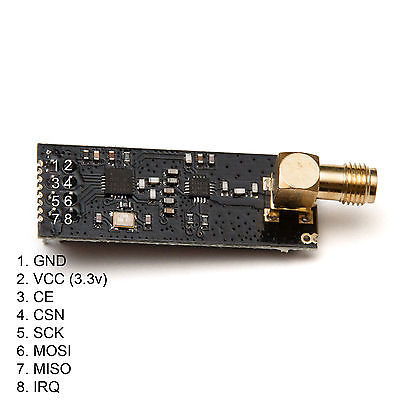

NRF24L01 with PA and LNA Module

NRF24L01 with PA and LNA Module
    NRF24L01 with PA and LNA Module
    Voltage: 3-3.6V (recommended 3.3V) V
    Maximum output power: +20dBm
    Emission mode current(peak): 115mA
    Receive Mode Current(peak): 45mA
    Power-down mode current: 4.2uA
    Sensitivity 2Mbps mode in received: -92dBm
    Sensitivity 1Mbps mode in received: -95dBm
    Sensitivity 250kbps mode in received: -104dBm
    PA gain: 20DbLNA gain: 10Db
    LNA Noise figure: 2.6Db
    Antenna Gain (peak): 2Dbi
    2MB rate (Open area): 520m
    1MB rate (Open area): 750m
    250Kb rate (Open area): 1000m

  data sheet

Ứng dụng sản phẩm
