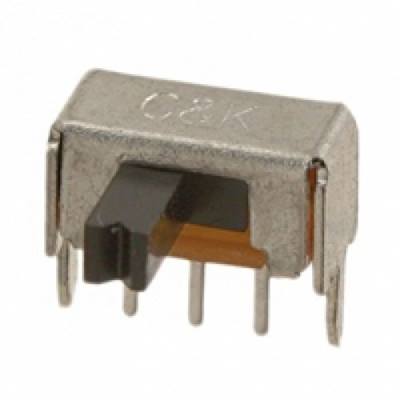

OS102011MA1QN1 (SW-SPDT)
Giá: 1.400₫ Còn hàng
SWITCH SLIDE SPDT Right Angle 100MA 12V
SWITCH SLIDE SPDT Right Angle 100MA 12V
Family Slide Switches
Series OS
Packaging Bulk
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating 100mA (DC)
Voltage Rating - AC -
Voltage Rating - DC 12V
Actuator Type Standard
Actuator Length 4.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features Epoxy Sealed Terminals
Actuator Material Polyoxymethylene (Acetal) (POM)
Switch Travel 2.00mm
Mechanical Life 10,000 Cycles
Electrical Life 10,000 Cycles
