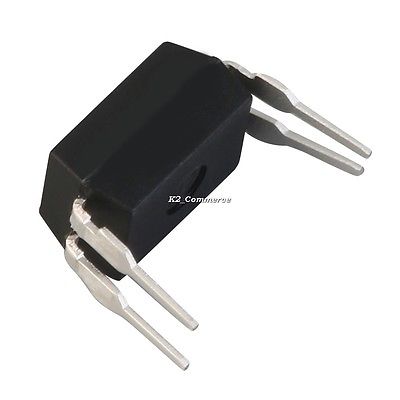

PC814

Giá: 3.000₫ Còn hàng

OPTOISOLATOR 5KV TRANS 4 PINDIP

OPTOISOLATOR 5KV TRANS 4 PINDIP,

Optoisolators - Transistor, Photovoltaic Output
Packaging      Tape & Reel
Number of Channels    1
Voltage - Isolation    5000Vrms
Current Transfer Ratio (Min)    20% @ 1mA
Current Transfer Ratio (Max)    300% @ 1mA
Turn On / Turn Off Time (Typ)    -
Rise / Fall Time (Typ)    4µs, 3µs
Input Type    AC, DC
Output Type    Transistor
Voltage - Output (Max)    80V
Current - Output / Channel    50mA
Voltage - Forward (Vf) (Typ)    1.2V
Current - DC Forward (If) (Max)    50mA
Vce Saturation (Max)    200mV
Mounting Type    Surface Mount
Package / 4 PINDIP

  data sheet
