PC847

Giá: 16.000₫ Còn hàng

OPTOISOLTR 5KV 4CH TRANS 16-DIP

OPTOISOLTR 5KV 4CH TRANS 16-DIP,

Optoisolators - Transistor, Photovoltaic Output
Packaging     Tube
Number of Channels    4
Voltage - Isolation    5000Vrms
Current Transfer Ratio (Min)    80% @ 5mA
Current Transfer Ratio (Max)    260% @ 5mA
Turn On / Turn Off Time (Typ)    -
Rise / Fall Time (Typ)    4µs, 3µs
Input Type    DC
Output Type    Transistor
Voltage - Output (Max)    35V
Current - Output / Channel    50mA
Voltage - Forward (Vf) (Typ)    1.2V
Current - DC Forward (If) (Max)    50mA
Mounting Type    Through Hole

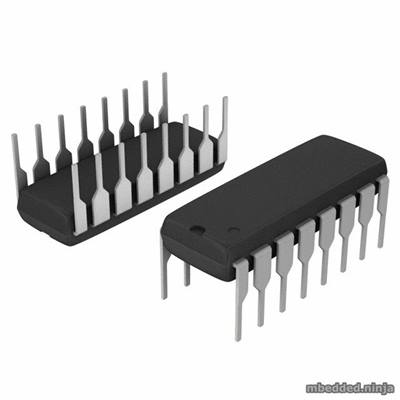

Package / 16-DIP

  data sheet



Ứng dụng sản phẩm
