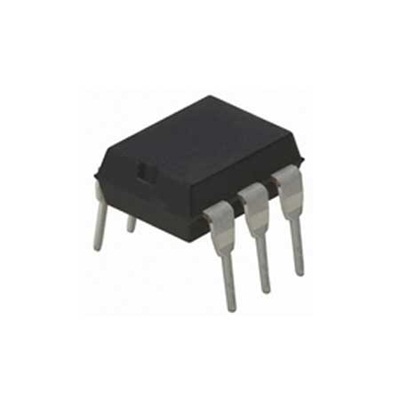

PC900V

PHOTOCOUPLER OPIC DGTL OUT 6-DIP,

Optoisolators - Logic Output
Series    OPIC™
Packaging     Tube
Number of Channels    1
Inputs - Side 1/Side 2    1/0
Voltage - Isolation    5000Vrms
Common Mode Transient Immunity (Min)    -
Input Type    DC
Output Type    Open Collector
Current - Output / Channel    50mA
Data Rate    -
Propagation Delay tpLH / tpHL (Max)    6µs, 3µs
Rise / Fall Time (Typ)    100ns, 50ns
Voltage - Forward (Vf) (Typ)    1.1V
Current - DC Forward (If) (Max)    50mA
Voltage - Supply    3 V ~ 15 V
Mounting Type    Through Hole
Package / 6-DIP (0.300", 7.62mm)
