PC929J

OPTOISO 4KV GATE DRIVER 14SMT,

Family    Isolators - Gate Drivers
Series    OPIC™
Packaging ?     Tube ?
Technology    Optical Coupling
Number of Channels    1
Voltage - Isolation    4000Vrms
Common Mode Transient Immunity (Min)    1.5kV/µs
Propagation Delay tpLH / tpHL (Max)    500ns, 500ns
Pulse Width Distortion (Max)    -
Rise / Fall Time (Typ)    200ns, 200ns
Current - Output High, Low    -
Current - Peak Output    400mA
Voltage - Forward (Vf) (Typ)    1.6V
Current - DC Forward (If) (Max)    20mA
Voltage - Supply    15 V ~ 30 V

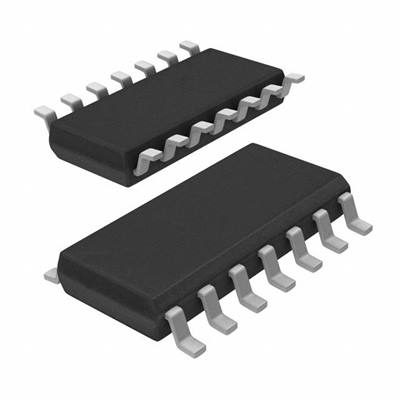

Package /14-SOIC (0.256", 6.50mm Width)
