PHB108NQ03LT

Giá: 9.000₫ Còn hàng

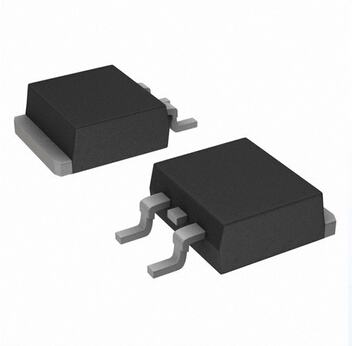

MOSFET N-CH 25V 75A D2PAK

MOSFET N-CH 25V 75A D2PAK,

FET Type MOSFET N-Channel, Metal Oxide

FET Feature Logic Level Gate

Drain to Source Voltage (Vdss) 25V

Current - Continuous Drain (Id)  25°C 75A (Tc)

Rds On (Max)  Id, Vgs 6 mOhm  25A, 10V

Vgs(th) (Max)  Id 2V  1mA

Gate Charge (Qg)  Vgs 16.3nC  4.5V

Input Capacitance (Ciss)  Vds 1375pF @ 12V

Power - Max 187W

Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB



​
data sheet

Ứng dụng sản phẩm
