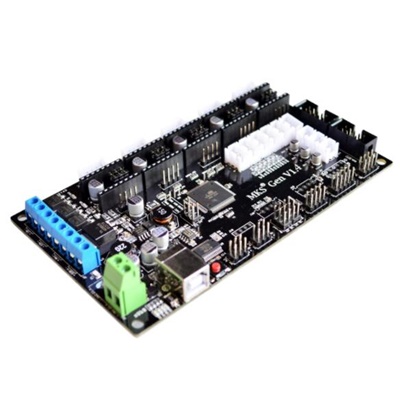

MKS Gen V1.4 3D Printer Kit with MKS Gen V1.4 RepRap Board V1.0 Stepstick Driver - 143*84*20MM BLACK
Mega 2560 and ramps1.4 set on a board, to solve complicated Ramps1.4 combination of interfaces, the problem of failure prone.
replace the motor drive, drive and support 4988 8825 drive.
the circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves.
using high-quality MOSFET, and better heat dissipation.
using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps.
can accept 24V input power under the same system can be hot-bed current is reduced to 1/4, an effective solution to the hot bed MOS pipe heat problems.
the firmware can use open source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4.
can be connected to the control panel and 12864LCD Ramps1.4,2004LCD control panel.(Can't be sure to match all of stype of 12864LCD and 2004LCD )
reserved for motor pulse and direction output ports for easy plug-in high-current To add a large current (eg 2A, 5A) motor drive circuit.
reserved Ramps1.4 on Servos, AUX-1, AUX-2 interface that provides three 5V output, three 12V outputs
