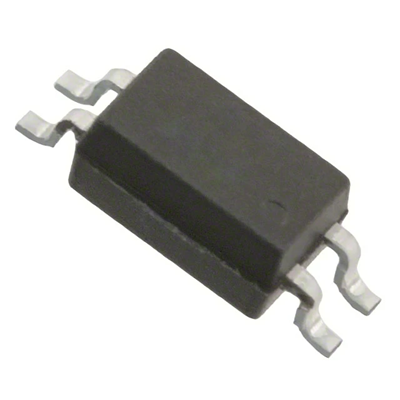

PS2801C-1-F3-A

Optoisolator Transistor Output 2500Vrms 1 Channel 4-SSOP
Voltage - Isolation    2500Vrms
Current Transfer Ratio (Min)    50% @ 5mA
Current Transfer Ratio (Max)    400% @ 5mA
Turn On / Turn Off Time (Typ)    10µs, 7µs
Rise / Fall Time (Typ)    5µs, 7µs
Input Type    DC
Output Type    Transistor
Voltage - Output (Max)    80V
Current - Output / Channel    30mA
Voltage - Forward (Vf) (Typ)    1.2V
Current - DC Forward (If) (Max)    30mA
Vce Saturation (Max)    300mV
Operating Temperature    -55°C ~ 100°C
Mounting Type    Surface Mount
Package / Case    4-SOIC (0.173", 4.40mm)
