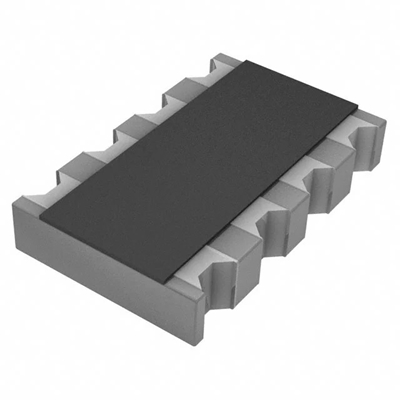

RES ARRAY 4 - 5% 1K 1206

Giá: 120₫ Còn hàng

RES ARRAY 4 RES 1K OHM 1206 - 1k Ohm ±5% 62.5mW Power Per Element Isolated

RES ARRAY 4 RES 1K OHM 1206 - 1k Ohm ±5% 62.5mW Power Per Element Isolated Resistor
Packaging    Tape & Reel (TR)
Part Status    Active
Circuit Type    Isolated
Resistance (Ohms)    1k
Tolerance    ±5%
Number of Resistors    4
Resistor Matching Ratio    -
Resistor-Ratio-Drift    -
Number of Pins    8
Power Per Element    62.5mW
Temperature Coefficient    ±200ppm/°C
Operating Temperature    -55°C ~ 125°C
Applications    -
Mounting Type    Surface Mount
Package / Case    1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package    -
Size / Dimension    0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)    0.028" (0.70mm)
