RF Module 2 Relay-220

Giá: 68.000₫ Còn hàng

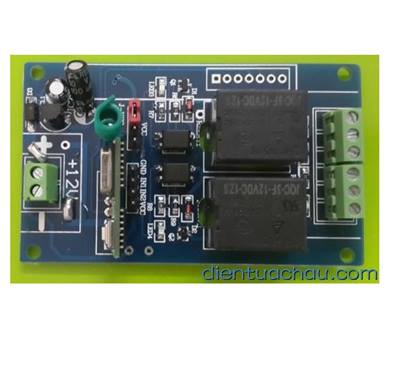

RF Wireless Control 220VAC 2 Channel Relay Receiver

RF Wireless Control 220VAC 2 Channel Relay Receiver
learning code decode receiver moudle
Opto-isolated 2 Channel 5V Relay Module
 Operating voltage: 220VAC
Static current: ≤6mA
Load control: alternating current/direct current
Output current: ≤10A
Operating frequency: 315MHz
Receiver sensibility: -105dbm
Size: 78*48*19mm
singnal Inter-locking (Latch)
singnal Self-locking (Toggle )
singnal Non-locking (Momentary is defult)

Working priceple
Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 30 pcs different coded remote control.Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527

Ứng dụng sản phẩm
