STM32F103C8T6 Minimum System ARM

Giá: 79.000₫ Còn hàng

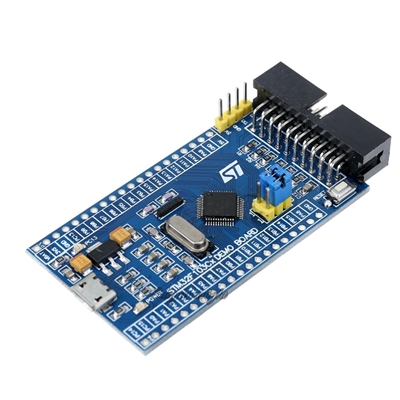

STM32F103C8T6 Minimum System ARM STM32 F103 Development Board Module For Arduino

STM32F103C8T6 Minimum System ARM STM32 F103 Development Board Module For Arduino
STM32F103C8 main chip.
SMD 8M crystal (through the chip internal PLL up to 72M) ST official standard parameters.
LM1117-3.3V regulator chip provides a maximum of 800mA current.
All the way mini USB port, the system can be powered version, aside USB communication.
The reset button.
A standard JTAG download port, support JLink, STLink.
BOOT select the port.
IO expansion pin 20pin X 2.
A power indicator.
A functional indicator, used to validate the basic functions of the IO port.
Reserved for serial download interface, easy and 5V development board, serial port to download program.
