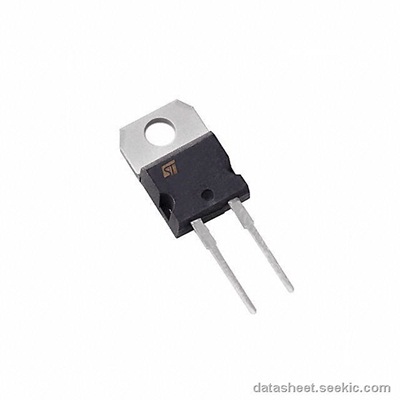

STTH12R06D

Giá: 13.500₫ Còn hàng

DIODE GEN PURP 600V 12A TO220AC

DIODE GEN PURP 600V 12A TO220AC,

Diode Type  Standard

Voltage - DC Reverse (Vr) (Max) 600V

Current - Average Rectified (Io) 12A

Voltage - Forward (Vf) (Max) @ If 2.9V @ 12A

Speed Fast Recovery =< 500ns, > 200mA (Io)

Reverse Recovery Time (trr) 45ns

Current - Reverse Leakage @ Vr 45µA @ 600V

Capacitance @ Vr, F -

Package / Case TO-220-2

​
data sheet



Ứng dụng sản phẩm
