SW-18015P

Giá: 1.200₫ Còn hàng

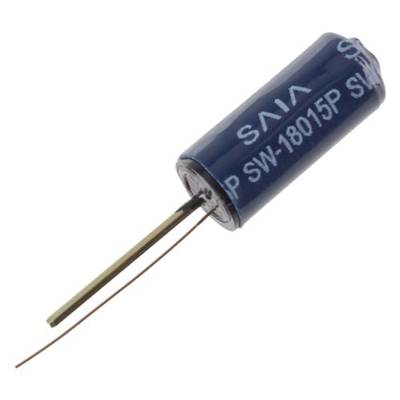

 SW-18015P Sealed High Sensitivity Vibration Sensor Switch

 SW-18015P Sealed High Sensitivity Vibration Sensor Switch
Specifications:
Max voltage: 12V
Max current: 20mA
Conductive time: ~2ms
Closed resistance <10 ohm
Open resistance: >10M ohm
Operating temperature range: -40 to 80 C
Pull force of terminal: 500gf for 1 min
Humidity: 95% RH, 40C for 96 hours
Operating lifespan: up to 100,000 cycles

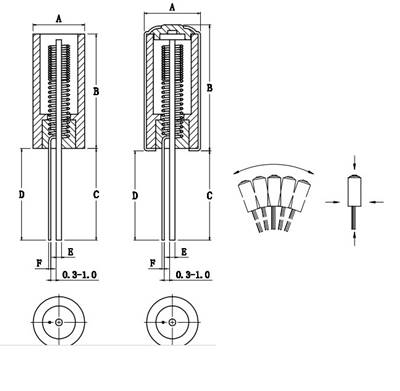

Dimensions (excluding pin): 4.77mm (0.19in) diameter x 11.18mm (0.44in) length
Dimensions (including pin): 21.5mm (0.85") length
Weight: 0.22g (.008oz)
