T491C226K025AT

Giá: 3.200₫ Còn hàng

22µF/ 25V ±10% Molded Tantalum Capacitors 25V 2413 (6032 Metric) 1.4 Ohm

22µF ±10% Molded Tantalum Capacitors 25V 2413 (6032 Metric) 1.4 Ohm
Capacitance     22µF
Tolerance     ±10%
Voltage - Rated     25V
Type     Molded
ESR (Equivalent Series Resistance)     1.4 Ohm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     2000 Hrs @ 85°C
Mounting Type     Surface Mount

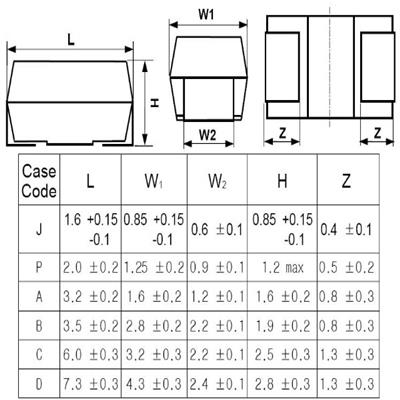

Package / Case     2413 (6032 Metric)
Size / Dimension     0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Max)     0.110" (2.80mm)
Lead Spacing     -
Manufacturer Size Code     C

data sheet

data sheet
Ứng dụng sản phẩm
