T491D227K016AT

Giá: 13.000₫ Còn hàng

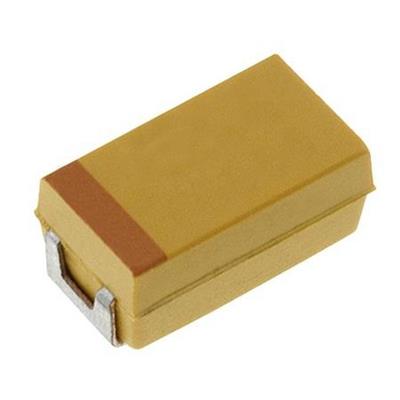

220µF/ 16V ±10% Molded Tantalum Capacitors 2917 (7343 Metric) 500 mOhm

220µF ±10% Molded Tantalum Capacitors 16V 2917 (7343 Metric) 500 mOhm
Capacitance     220µF
Tolerance     ±10%
Voltage - Rated     16V
Type     Molded
ESR (Equivalent Series Resistance)     500 mOhm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     2000 Hrs @ 85°C
Mounting Type     Surface Mount
Package / Case     2917 (7343 Metric)
Size / Dimension     0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)     0.122" (3.10mm)
Lead Spacing     -
Manufacturer Size Code     D
