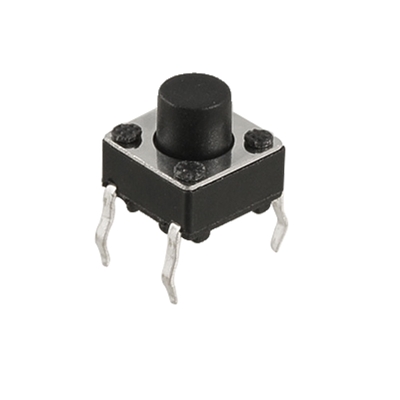

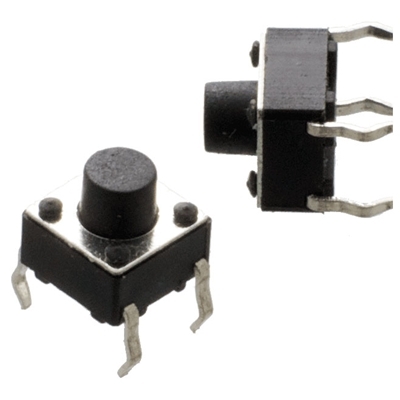

Tact switch 6A-5

Giá: 400₫ Còn hàng

Tactile Switch SPST-NO Through Hole Height off PCB  5mm

Tactile Switch SPST-NO Through Hole Height off PCB 5mm
Mounting Type     Through Hole
Termination Style     PC Pin

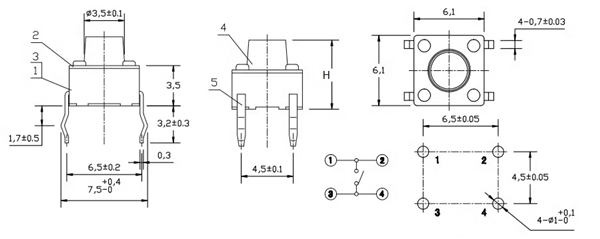

Outline     6.00mm x 6.00mm
Actuator Height off PCB, from Pins     5mm
Rating: 50mA 12VDC
Contact Resistance : 50mΩ max(initial)
Insulation Resistance: 100MΩ(minDC 250V)
Electrically Life: 50,000cycles
