TAJA106K010RNJ

Giá: 1.000₫ Còn hàng

47µF/ 6.3V   ±20% Molded Tantalum Capacitors 1206 (3216 Metric) 1.6 Ohm

10µF ±10% Molded Tantalum Capacitors 10V 1206 (3216 Metric) 3 Ohm
Capacitance     10µF
Tolerance     ±10%
Voltage - Rated     10V
Type     Molded
ESR (Equivalent Series Resistance)     3 Ohm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     -
Mounting Type     Surface Mount

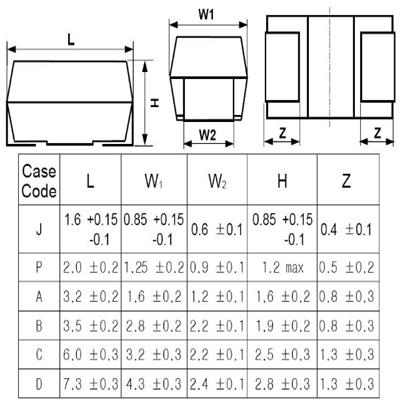

Package / Case     1206 (3216 Metric)
Size / Dimension     0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)     0.071" (1.80mm)
Lead Spacing     -
Manufacturer Size Code     A

data sheet
