TAJB226K016RNJ

Giá: 2.000₫ Còn hàng

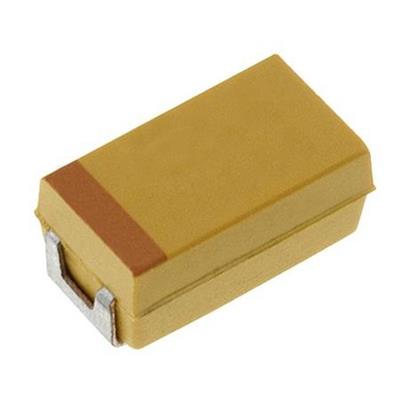

22µF/  16V   ±10% Molded Tantalum Capacitors 16V 1210 (3528 Metric) 2.3 Ohm

22µF ±10% Molded Tantalum Capacitors 16V 1210 (3528 Metric) 2.3 Ohm
Capacitance     22µF
Tolerance     ±10%
Voltage - Rated     16V
Type     Molded
ESR (Equivalent Series Resistance)     2.3 Ohm
Operating Temperature     -55°C ~ 125°C
Lifetime @ Temp.     -
Mounting Type     Surface Mount
Package / Case     1210 (3528 Metric)
Size / Dimension     0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Max)     0.083" (2.10mm)
Lead Spacing     -

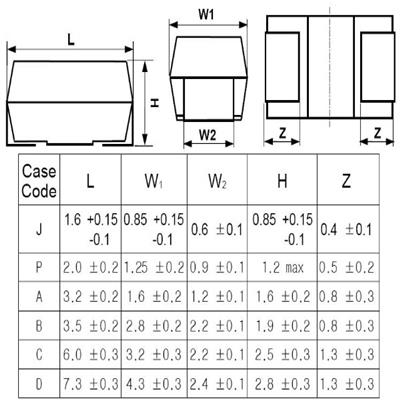

Manufacturer Size Code     B

data sheet

data sheet
Ứng dụng sản phẩm
