TAJD477K006RNJ
Giá: 7.500₫ Còn hàng

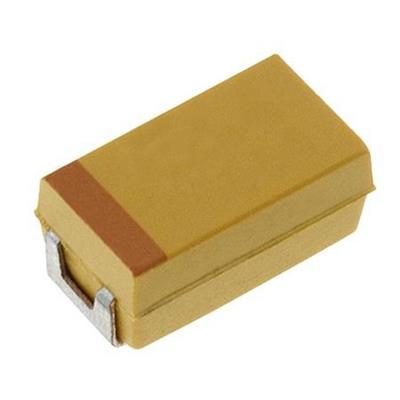

470µF/ 6.3V ±10% Molded Tantalum Capacitors 2917 (7343 Metric) 400 mOhm
470µF ±10% Molded Tantalum Capacitors 6.3V 2917 (7343 Metric) 400 mOhm
Capacitance 470µF
Tolerance ±10%
Voltage - Rated 6.3V
Type Molded
ESR (Equivalent Series Resistance) 400 mOhm
Operating Temperature -55°C ~ 125°C
Lifetime @ Temp. -
Mounting Type Surface Mount
Package / Case 2917 (7343 Metric)

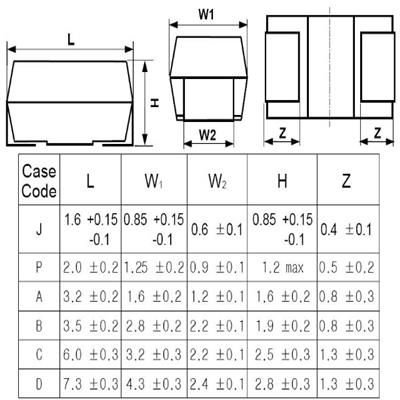

Size / Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Lead Spacing -
Manufacturer Size Code D
