TB62726AF

Giá: 0₫ Còn hàng

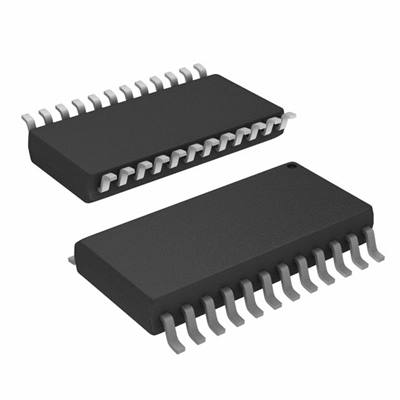

 16-bit Constant-Current LED Driver SOP24

 16-bit Constant-Current LED Driver SOP24,

Output current capability and number of outputs: 90 mA × 16 outputs
 Constant current range: 2 to 90 mA
 Application output voltage: 0.7 V (output current 2 to 80 mA)
 0.4 V (output current 2 to 40 mA)
 For anode-common LEDs
 Input signal voltage level: 3.3-V and 5-V CMOS level (Schmitt
trigger input)
 Power supply voltage range VDD = 3.0 to 5.5 V
 Maximum output terminal voltage: 17 V
 Serial and parallel data transfer rate: 20 MHz
Package SOP24-P-300-1.00B

​  data sheet
