TLE2426IDR

Giá: 30.000₫ Còn hàng

Ground Reference (Virtual) Voltage Reference IC 20V ±1% 20mA 8-SOIC


Ground Reference (Virtual) Voltage Reference IC 20V ±1% 20mA 8-SOIC
Voltage - Output (Min/Fixed)    2V
Voltage - Output (Max)    20V
Current - Output    20mA
Tolerance    ±1%
Temperature Coefficient    35ppm/°C Typical
Noise - 0.1Hz to 10Hz    -
Noise - 10Hz to 10kHz    120µVrms
Voltage - Input    4 V ~ 40 V
Current - Supply    400µA
Current - Cathode    -
Operating Temperature    -40°C ~ 85°C (TA)
Mounting Type    Surface Mount

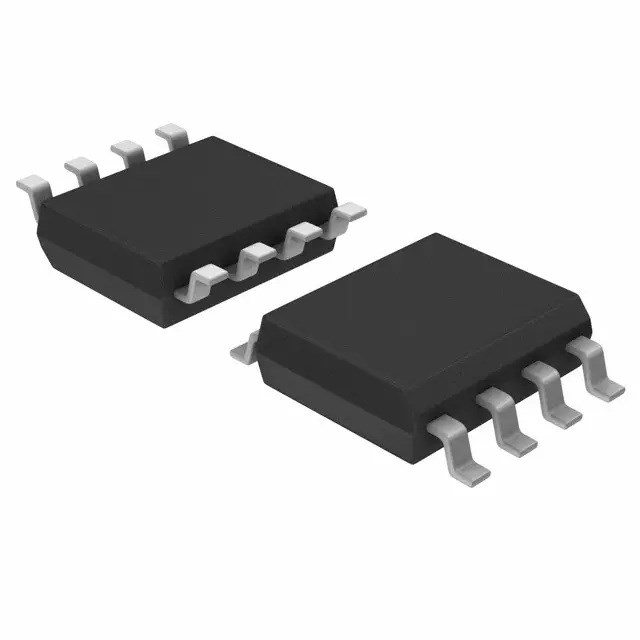

Package / Case    8-SOIC (0.154", 3.90mm Width)
