TLP250

Giá: 18.000₫ Còn hàng

OPTOISO 2.5KV GATE DRIVER 8DIP

OPTOISO 2.5KV GATE DRIVER 8DIP,

Isolators - Gate Drivers
Packaging     Tube
Technology    Optical Coupling
Number of Channels    1
Voltage - Isolation    2500Vrms
Common Mode Transient Immunity (Min)    5kV/µs
Propagation Delay tpLH / tpHL (Max)    500ns, 500ns
Pulse Width Distortion (Max)    -
Rise / Fall Time (Typ)    -
Current - Output High, Low    500mA, 500mA
Current - Peak Output    1.5A
Voltage - Forward (Vf) (Typ)    1.6V
Current - DC Forward (If) (Max)    20mA
Voltage - Supply    15 V ~ 30 V
Mounting Type    Through Hole

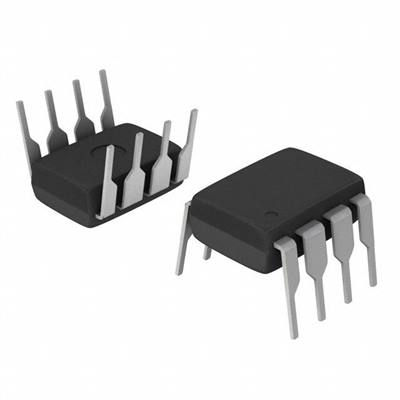

Package / 8-DIP (0.300", 7.62mm)

 data sheet
