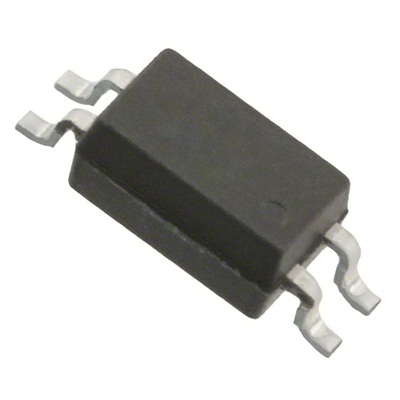

TLP280

Giá: 15.000₫ Còn hàng

OPTOISO 2.5KV 1CH TRANS 4-SOP

OPTOISO 2.5KV 1CH TRANS 4-SOP,

Family    Optoisolators - Transistor, Photovoltaic Output
Packaging     Tape & Reel
Number of Channels    1
Voltage - Isolation    2500Vrms
Current Transfer Ratio (Min)    100% @ 5mA
Current Transfer Ratio (Max)    600% @ 5mA
Turn On / Turn Off Time (Typ)    3µs, 3µs
Rise / Fall Time (Typ)    2µs, 3µs
Input Type    AC, DC
Output Type    Transistor
Voltage - Output (Max)    80V
Current - Output / Channel    50mA
Voltage - Forward (Vf) (Typ)    1.15V
Current - DC Forward (If) (Max)    50mA
Vce Saturation (Max)    400mV
Package / 4 sop 1.27mm

  data sheet



Ứng dụng sản phẩm
