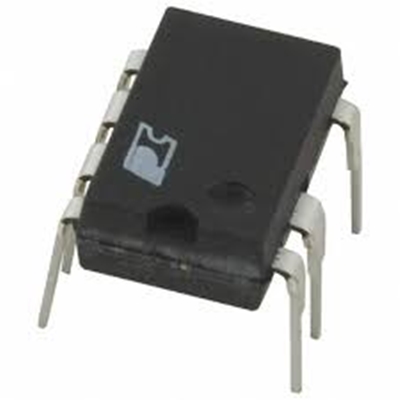

TNY274PG

Giá: 8.500₫ Còn hàng

Converter Offline Flyback Topology 132kHz SMD-8C

Converter Offline Flyback Topology 132kHz DIP-8C
Output Isolation     Isolated
Internal Switch(s)     Yes
Voltage - Breakdown     700V
Topology     Flyback
Voltage - Start Up     -
Voltage - Supply (Vcc/Vdd)     -
Duty Cycle     65%
Frequency - Switching     132kHz
Power (Watts)     11W
Fault Protection     Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit
Control Features     EN
Operating Temperature     -40°C ~ 150°C (TJ)
Package / Case     8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package     DIP-8C

data sheet
