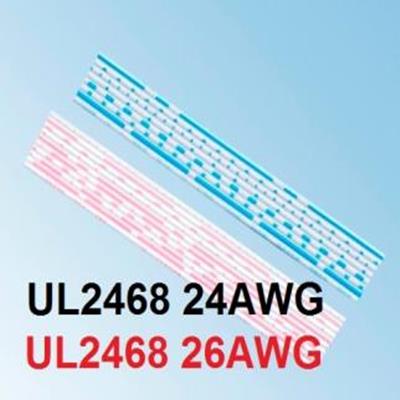

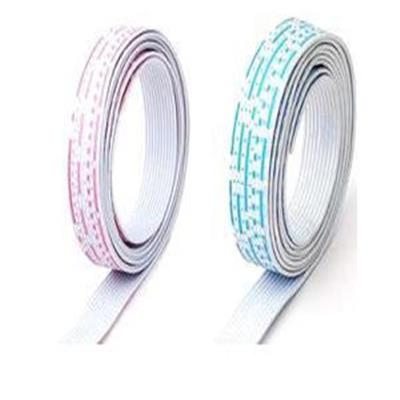

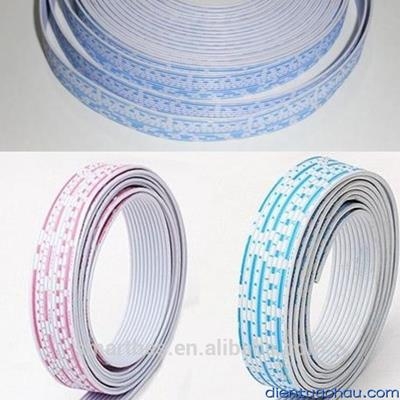

UL2468 24AWG Flat Ribbon 12P
Giá: 1₫ Còn hàng
12 line UL2468 24AWG pitch 2.54mm
SPEC NO. UL2468 24AWG pitch 2.54mm
RATED VOLTAGE 300V
SECTIONAL AREA AWG/mm 11/0.14±0.008TS × 12 ( 11line tin Plating)
SECTIONAL AREA mm² : 0.17 × 10
STRANDED DIAMETER mm : 0.53
MATERIAL : PVC
THE AVERAGE THICKNESS mm : 0.43
MINIMUM GAUGE mm :0.39
COLOR : White + blue color
INSULATION DIAMERER : mm 1.4±0.10
Ứng dụng sản phẩm
