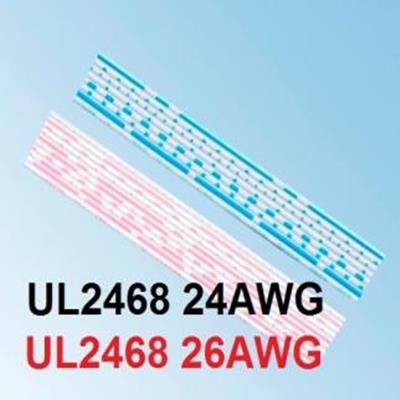

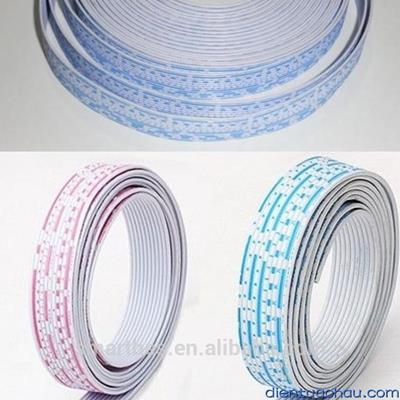

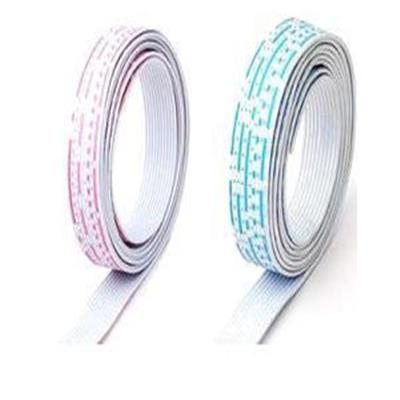

UL2468 24AWG Flat Ribbon 7P

Giá: 1₫ Còn hàng

7 line  UL2468  24AWG pitch 2.54mm

SPEC NO.  UL2468  24AWG pitch 2.54mm
RATED VOLTAGE    300V
SECTIONAL AREA AWG/mm  11/0.14±0.008TS × 7  ( 11line tin Plating)
SECTIONAL AREA    mm²        :    0.17 × 10
STRANDED  DIAMETER    mm    :   0.53
MATERIAL                      :   PVC
THE AVERAGE THICKNESS    mm :    0.43
MINIMUM GAUGE    mm      :0.39
COLOR                              :  White + blue color
INSULATION DIAMERER  :    mm    1.4±0.10

Ứng dụng sản phẩm
