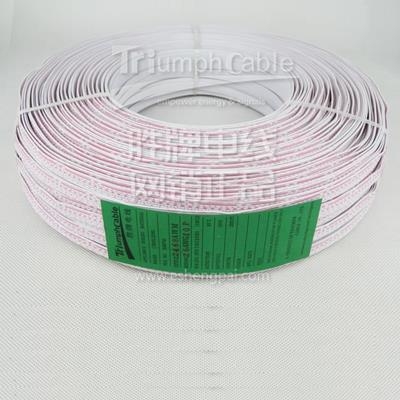

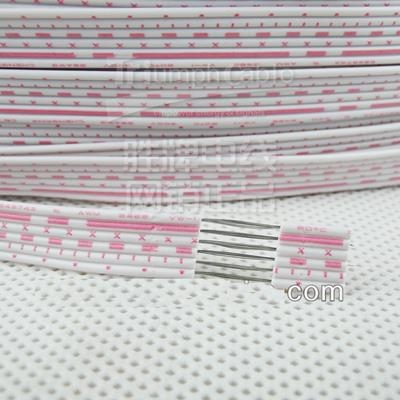

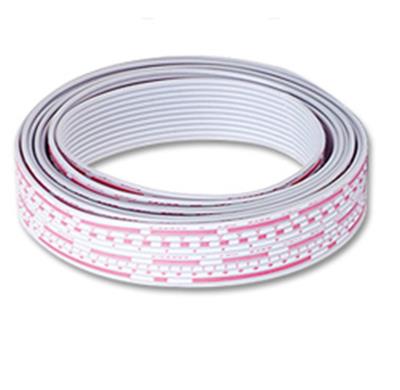

UL2468 26AWG Flat Ribbon 9P

Giá: 0₫ Còn hàng

UL2468  26AWG  10P  pitch 2.54mm 7/0.12±0.008TS × 9 ( 7 line tin plating)

UL2468  26AWG  9P  pitch 2.54mm 7/0.12±0.008TS × 10 ( 7 line tin plating)
RATED VOLTAGE    300V
SECTIONAL AREA AWG/mm  7/0.12±0.008TS × 9 ( 7 line tin plating)
SECTIONAL AREA    mm²        :   0.08 × 10
STRANDED  DIAMETER    mm    :   0.36
MATERIAL                      :   PVC
THE AVERAGE THICKNESS    mm :    0.47
MINIMUM GAUGE    mm      :0.39
COLOR                              :  White + Red color
INSULATION DIAMERER  :    mm    1.3±0.10

Brand Name : Triumph Cable
