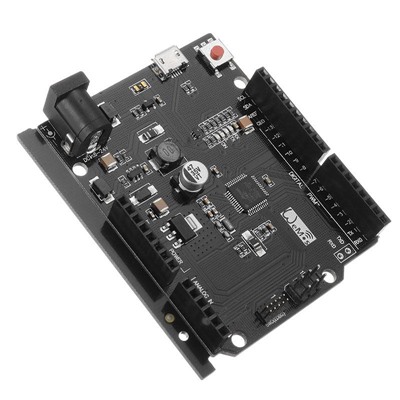

Wemos SAMD21 M0 32-bit ARM

Giá: 220.000₫ Còn hàng

Wemos SAMD21 M0 32-bit ARM Cortex M0 Core Compatible With Arduino Zero Arduino

Wemos SAMD21 M0 32-bit ARM Cortex M0 Core Compatible With Arduino Zero Arduino
Microcontroller ATSAMD21G18, 48pins LQFP
Architecture   ARM Cortex-M0+
Operating Voltage    3.3V
Flash memory   256 KB
SRAM  32Kb
Clock Speed  48 MHz
Analog I/O Pins  6 +1 DAC
DC Current per I/O Pins  7 mA (I/O Pins)
Input Voltage   5-15 V
Digital I/O Pins  20, with 12 PWM and UART
PWM Output   12
Power Consumption   29 mA
PCB Size53 x 68.5 mm
