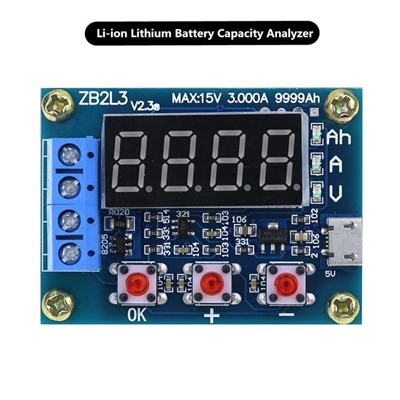

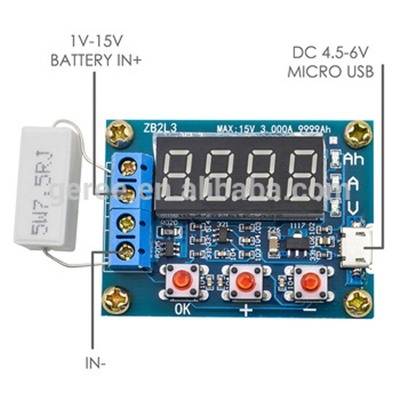

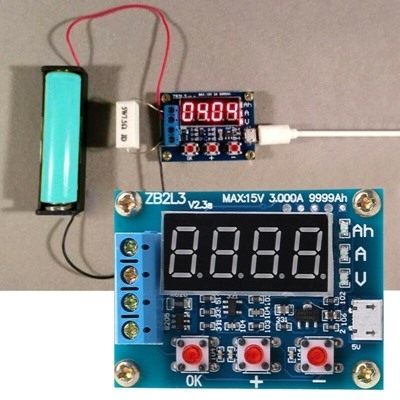

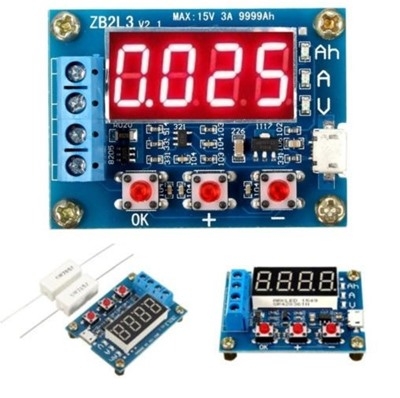

ZB2L3 Li-ion Lithium Battery Capacity Tester

Giá: 80.000₫ Còn hàng

ZB2L3 Li-ion Lithium Battery Capacity Tester Resistance Lead-acid Battery Capacity Meter Discharge

ZB2L3 Li-ion Lithium Battery Capacity Tester Resistance Lead-acid Battery Capacity Meter Discharge
 Specifications:
Power supply voltage: DC4.5-6V (micro USB connector)
Operating Current: less than 70mA
Discharge voltage: 1.00V-15.00V 0.01V resolution
Termination voltage range: 0.5-11.0V
Supported by current: 3.000A 0.001A resolution
Maximum voltage measurement error: 1% + 0.02V
Maximum current measurement error: 1.5% + - 0.008A
Maximum battery capacity range: 9999Ah (1Ah = 1000mAh) greater value by shifting the decimal point to switch, when the display is less than 10Ah X.XXX, as shown above to achieve 10Ah XX.XX, and so on.
Board size: 50mmX37mm
Finished Size: 50mmX37mmX17mm (length X width X height maximum position size, contains copper foot height)
