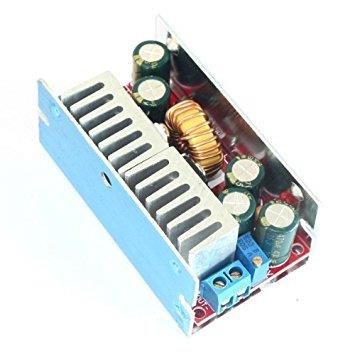

ZS-PD8 Step Down Power Module

Giá: 103.000₫ Còn hàng

DC-DC Module Power Supply 160W  Input voltage: 5-40V   Output voltage: 1.25-36V - 8A

DC-DC Module Power Supply 160W  Input voltage: 5-40V   Output voltage: 1.25-36V - 8A
Type: Non-isolated buck module (BUCK)
Input voltage: 5-40V (limit 40V please leave margin)
Output voltage: 1.25-36V continuously adjustable
Output current: Rated 8A (current size and differential pressure temperature are associated with high current when the chip overheating automatically dropping in the general ambient temperature natural cooling current can be stabilized at 5-6A work to enhance the heat for a long time to work 8A)
Output power: natural cooling power 80W to strengthen the heat up to 160W
Operating temperature: -40 ~ +85 degrees
Operating frequency: 180KHz
conversion efficiency: up to 95% (efficiency and input, output voltage, current, pressure related)
Short circuit protection: Yes (short circuit risk, please try not to short circuit)
over-temperature protection: there (after the temperature automatically reduce the output)
Input reverse polarity protection: Yes (please do not reverse for a long time)
Transient pulse overvoltage protection: Yes (overvoltage protection voltage 40.5V)
aluminum shell size: 70MM * 39MM * 31MM
