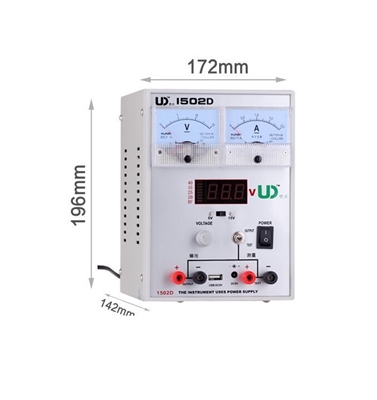

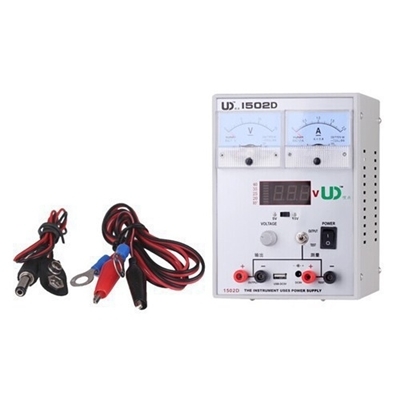

High Quality 15V 2A Adjustable Digital DC Power Supply 1502D
Short circuit protection: current display when more than 2A output current, automatic protection shut off the power supply output.
Short circuit protection and restoration function: can be switched between GSM and PHS, LEDs precisely indicate signal strength led intuitive.
Voltage test function: you can test DC voltages between 0-199.9V.
Power supply input
Fast protection and sound and light alarm, to be excluded after short circuit output can be recovered automatically within 1 second.
Rated operating conditions
Power 220V+-10% 50HZ
Operating conditions temperature humidity -10~40 90%
Storage conditions temperature humidity -20~80 80%
Stable operating voltage
Output voltage 0-15V
Load stability = 0.01%+-2MV
Recovery time of the =100us
Ripple noise <=1mvRms
Temperature coefficient of <=300PPm
Protection startup current > 10% standard values
