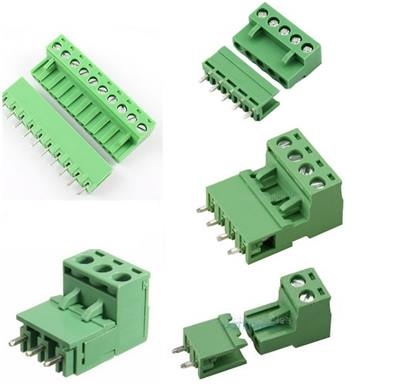

5Pin PCB Terminal Block

Giá: 5.000₫ Còn hàng

5 Pin  5.08mm Pitch Plug-in Screw PCB Terminal Block Connector

5 Pin  5.08mm Pitch Plug-in Screw PCB Terminal Block Connector

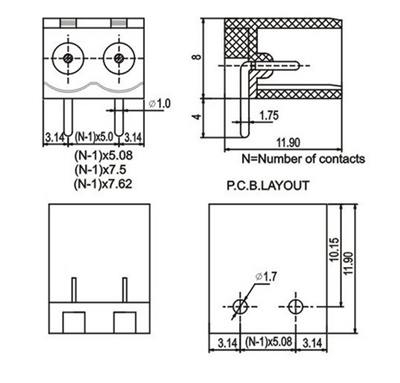

Pitch: 5.08mm
Pin header: Brass Tin plated
Housing: PA66.UL94V-0
Poles:5 Pin
Rated voltage: 300V 10A
Rated current: IEC:15A; UL:10A
Withstanding voltage: AC2500V/Min
Temperature range: -40 degrees Celsius~105 degrees Celsius



Ứng dụng sản phẩm
