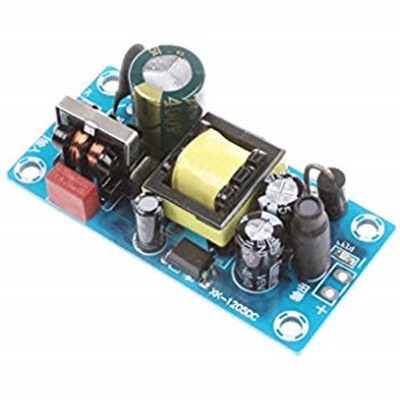

AC-DC 5V 2A Switching Power Supply Board Low Ripple Power Supply Board 10W Switching Module
Easy installation, input and output can solder 5.08 terminals or use pins.
There is a fixed installation hole at the four corners. The screw is required to prevent movement. The diameter of the fixed hole is 3.0mm.
Universal input voltage: 85-264V AC or 110-370V DC
Complete isolation of output and input high and low voltage.
Overload protection, short circuit protection, temperature protection
Power protection: overload, short circuit and over temperature protection
Voltage input: 85-264V AC/110-370V DC
Frequency input: 47-63HZ
Output voltage: DC 5V
Output current: rated 2A/ pe ak 3A
Output power: 10W
Overall size: long 63.7mm* wide 30.8mm* high 20m
