ACE-KB1

Giá: 35.000₫ Còn hàng

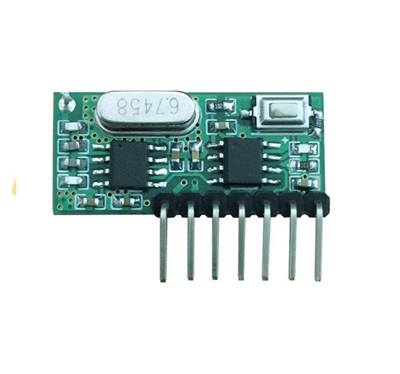

Learning remote wireless receiver decoder module 315Mhz

Learning remote wireless receiver decoder module 315Mhz
Encoding: Learning code (fixed code)
Operating voltage :3.3V-5.5V
Static current:≤6 mA (DC 5V)
Operating frequency:  135MHz
modulation Mode :ASK/OOK
Receiving sensitivity:-110 dBm (50 Ω)
Speed: < 2.4 K bps
Max rate    2.4 KHZ
Dimension:28*12.5*5mm
Output mode:TTL level , Momentary, Latch, Toggle ,user can set it  by welding, Momentary is defult.:IO Drive
Sink Current (Low level drive) 15mA,source current(High level drive) 12mA
singnal Inter-locking (Latch)
singnal Self-locking (Toggle )
singnal Non-locking (Momentary is defult)
Working priceple
Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 30 pcs different coded remote control.Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527
