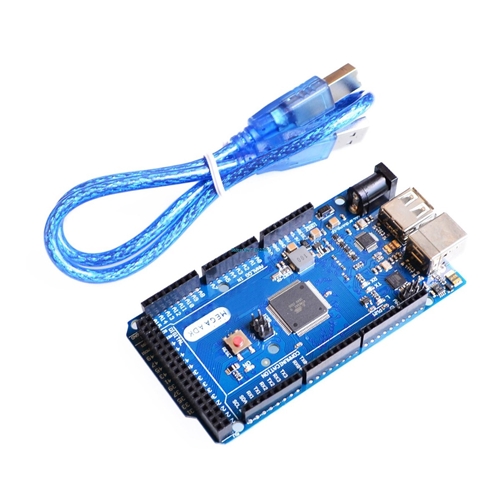

Arduino Mega ADK 2560

Giá: 470.000₫ Còn hàng

The Arduino ADK is a microcontroller board based on the ATmega256



The Arduino ADK is a microcontroller board based on the ATmega2560. It has a USB host interface to connect with Android based phones.
It is compatible with Android’s Accessory Development Kit examples. It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button.
Microcontroller: ATmega2560
Operating Voltage: 5V
Input Voltage (recommended): 9V
Input Voltage (limit): 7-18V
Digital I/O Pins: 54
PWM Digital I/O Pins: 14
Analog Input Pins: 16
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 256 KB
Flash Memory for Bootloader: 8 KB
SRAM: 8 KB
EEPROM: 4 KB
Clock Speed: 16 MHz
