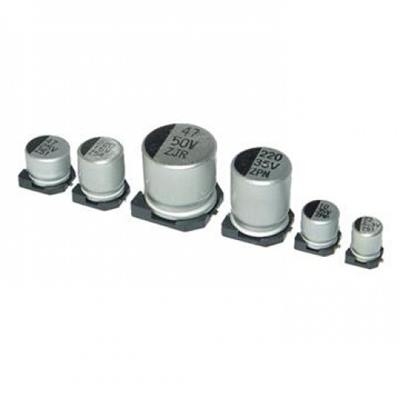

CAP ALUM 100UF 50V

Giá: 1.400₫ Còn hàng

CAP ALUM 100UF 50V 20% SMD

CAP ALUM 100UF 50V 20% SMD
Capacitance     100µF
Tolerance     ±20%
Voltage Rating     50V
ESR (Equivalent Series Resistance)     -
Lifetime @ Temp.     2000 Hrs @ 85°C
Operating Temperature     -40°C ~ 85°C
Polarization     Polar
Applications     General Purpose
Ripple Current     200mA @ 120Hz

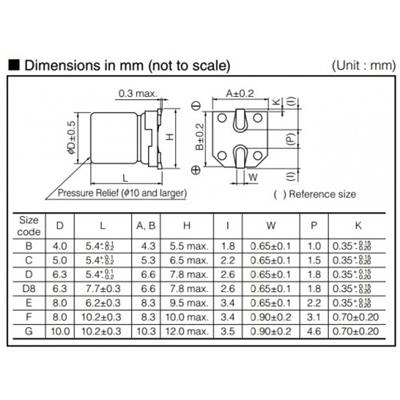

Size / Dimension     0.315" Dia (8.00mm)
Height - Seated (Max)     0.402" (10.20mm)
Surface Mount Land Size     0.327" L x 0.327" W (8.30mm x 8.30mm)

  data sheet
