CD4093B

Giá: 3.000₫ Còn hàng

IC GATE NAND 4CH 2-INP 14-SOIC

IC GATE NAND 4CH 2-INP 14-SOIC,

Family    Logic - Gates and Inverters
Packaging ?     Tape & Reel (TR) ?
Logic Type    NAND Gate
Number of Circuits    4
Number of Inputs    2
Features    Schmitt Trigger
Voltage - Supply    3 V ~ 18 V
Current - Quiescent (Max)    4µA
Current - Output High, Low    3.4mA, 3.4mA
Logic Level - Low    0.9 V ~ 4 V
Logic Level - High    3.6 V ~ 10.8 V
Max Propagation Delay @ V, Max CL    130ns @ 15V, 50pF

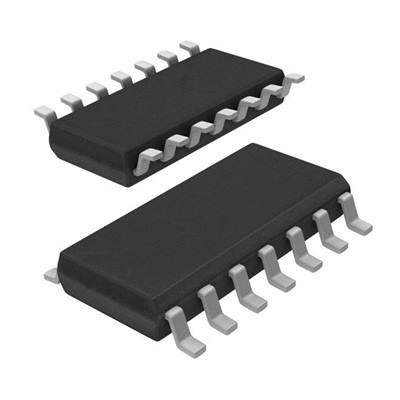

Package /  14-SOIC (0.154", 3.90mm Width)

  data sheet

Ứng dụng sản phẩm
