DC Brush Motor Controller Dual way 16A

Giá: 240.000₫ Còn hàng

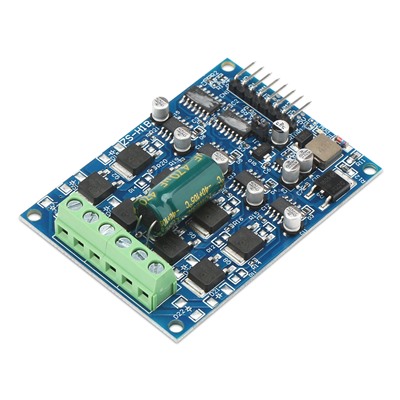

DC Brush Motor Controller, 16A Power Supply Module Dual way motor drive module forward

DC Brush Motor Controller, 16A Power Supply Module Dual way motor drive module forward / reverse PWM Motor Controller H Bridge Control Board
     Output channel: 2-way
    Working voltage: DC 5~48V
    Max. current: 16A
    Each channel peak current: 30A
    Each channel output rated power: (12V power supply) 96W; (48V power supply) 288W
    Control signal voltage: 3~5V
    Each channel control signal current: 2~10MA
    Support PWM frequency range: 2~20K
    Support PWM duty ratio range: 0~99%
    Min. PWM effective pulse width: 10US

Ứng dụng sản phẩm
