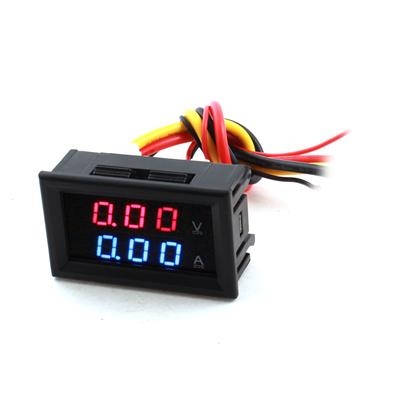

Digital Volt Ampere Meter 0V-100V-50A R+B
Giá: 85.000₫ Còn hàng
DC 0- 100V 50A Wired Leads Red & Blue LED 3-Bit Dual-Display Ammeter Voltmeter 0.0 Ammeter 50.0
Voltage measurement range of 0.0V-100V LED display Red & Blue color
Current test range 0-50A
Power supply range DC4-30.0V
Voltage error ± 0.1%
Current error ± 1%
External shunt specifications 75 milliohms
Operating current <20mA
Refresh rate of about 300mS time
Display three double 0.28 "LED digital tube
Display color red + red, red + blue. Optional
Lead length 15cm
Dimensions 48 x 29 x 22 mm, length x width x thickness;
Mounting hole 46 x 27 mm
Ứng dụng sản phẩm
