ER11 400W 12000rpm Brushless Spindle 48V

Giá: 2.050.000₫ Còn hàng

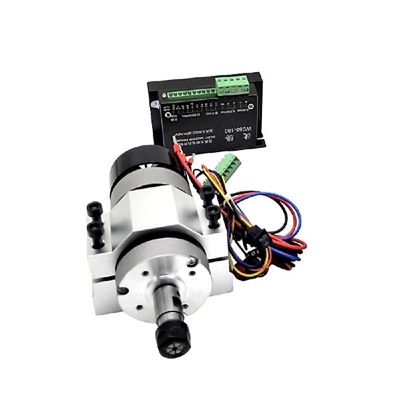

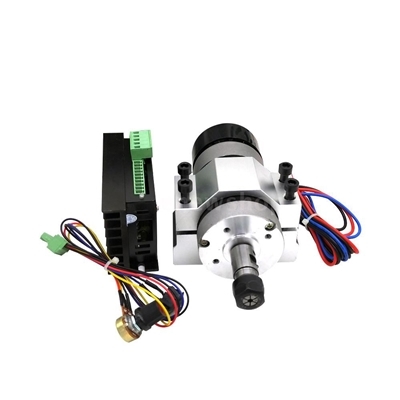

400W 12000rpm ER11 Chuck CNC Brushless Spindle Motor with Driver Speed Controller and Clamp DIY Engraving Machine Accessories Set

400W 12000rpm ER11 Chuck CNC Brushless Spindle Motor with Driver Speed Controller and Clamp DIY Engraving Machine Accessories Set
Specifications:
Material: metal
Main color: black+silver
Brushless motor:
Working voltage: 48V DC
Power: 400W
Speed: 12000 r/min
Distance: 0.45 (N.m)
Insulation resistance: > 2 ohms
Insulation dielectric strength: 400V
Diameter: 55mm / 2.2in
Axis collet length: 43mm / 1.7in
Diameter of axis collect holder: 16mm / 0.6in
Repeat accuracy: 0.01-0.03mm
ER11 collet: 3.175mm / 0.1in
Brushless DC speed driver controller:
Rated voltage: 20-50V DC
Rated current: 8A
Limited current: 10A
Maximum speed: over 20000RPM
Speed control: 1.regulation resistance, 2.external voltage: 10V DC
Alarm output: AL signal (This port and the ground have a 5V alarm output)
Power light: green LED (The led is on once power on)
Operation condition light: red LED (The led flashes one time continuously when the device is suspended)
Insulation resistance: >100MΩ at normal temperature and pressure
Insulation strength: 0.5KV, 1 minute at normal temperature and pressure
Storage temperature: -20℃- +65℃
Storage humidity: 0-95%RH
Working temperature: 0-45℃
Working humidity: < 80%, no frost, frost free
Working vibrating: 5.9m/S² MAX
Bore diameter: 55mm / 2.2in
Package size: 230 * 160 * 130mm / 9.1 * 6.3 * 5.1in
