ER11 500W 12000rpm Spindle 100Vdc

Giá: 1.600.000₫ Còn hàng

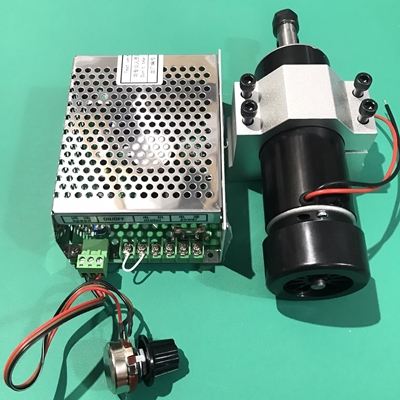

Spindle Motor ER11 Chuck 500W Spindle dc Motor & 52mm 12000rpm 110Vdc

Spindle Motor ER11 Chuck 500W Spindle dc Motor & 52mm
Dimension     130mm×100mm×50mm (L*W*H)
Power: 500W
Speed :0-12000RPM
Torque:590mN.m
Insulation resistance:> 2 megohms
Dielectric strength: 400V
Diameter: 52mm
Chuck Part Length: Arbor parts 35mm
Part chuck diameter: 16mm
Motor length: 200mm (including gripping parts and motor)
Spindle runout of about :0.02-0.03.
Product parameters:
the input voltage AC220V             50/60 hz2, plus or minus 10%
the armature output voltage: DC0 ~ 110V excitation output voltage DC110V
Dimensions: length 140mm × width 110mm × height 50mm
the adaptation motor power: 50W ~ 500W
connection mode: terminal type (convenient)
