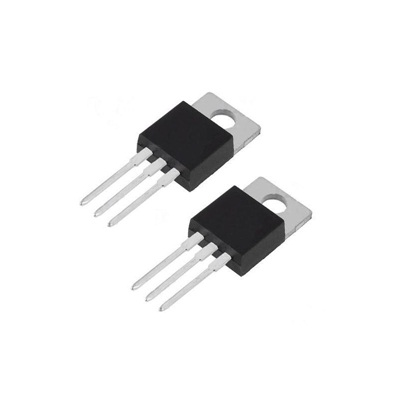

H1061

Giá: 3.500₫ Còn hàng

TRIPLE DIFFUSED SILICON NPN TRANSISTOR

TRIPLE DIFFUSED SILICON NPN TRANSISTOR,

Collector Base Voltage VCBO 100 V
Collector Emitter Voltage VCEO 80 V
Emitter Base Voltage VEBO 5 V
Collector Current (DC) IC 4 A
Collector Current (Peak) IC 8 A
Collector power Dissipation PC 40 W
Junction Temperature TJ 150 °C
Storage Temperature Tstg -55~150 °C

​  data sheet


Ứng dụng sản phẩm
