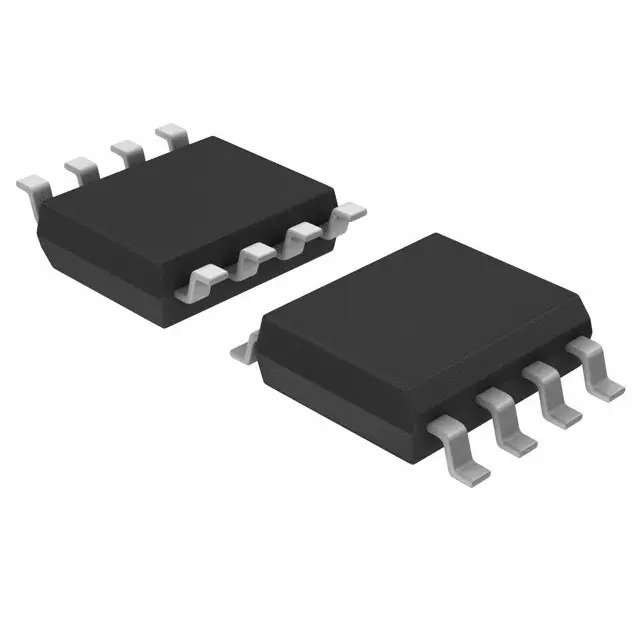

HCPL-0631-000E

Giá: 25.000₫ Còn hàng

Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 10kV/µs CMTI 8-SO


Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 2 Channel 10kV/µs CMTI 8-SO
Inputs - Side 1/Side 2    2/0
Voltage - Isolation    3750Vrms
Common Mode Transient Immunity (Min)    10kV/µs
Input Type    DC
Output Type    Open Collector, Schottky Clamped
Current - Output / Channel    50mA
Data Rate    10MBd
Propagation Delay tpLH / tpHL (Max)    100ns, 100ns
Rise / Fall Time (Typ)    24ns, 10ns
Voltage - Forward (Vf) (Typ)    1.5V
Current - DC Forward (If) (Max)    15mA
Voltage - Supply    4.5 V ~ 5.5 V
Operating Temperature    -40°C ~ 85°C
Mounting Type    Surface Mount
Package / Case    8-SOIC (0.154", 3.90mm Width)
