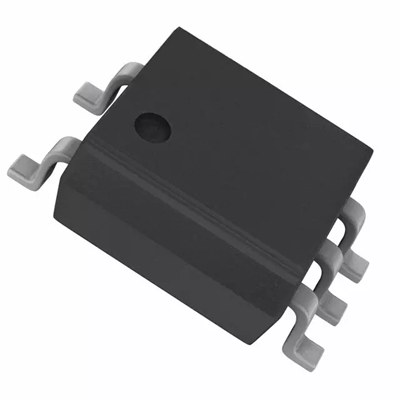

HCPL-M601-500E

Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 3750Vrms 1 Channel 5kV/µs CMTI 5-SO
Inputs - Side 1/Side 2    1/0
Voltage - Isolation    3750Vrms
Common Mode Transient Immunity (Min)    5kV/µs
Input Type    DC
Output Type    Open Collector, Schottky Clamped
Current - Output / Channel    50mA
Data Rate    10MBd
Propagation Delay tpLH / tpHL (Max)    75ns, 75ns
Rise / Fall Time (Typ)    24ns, 10ns
Voltage - Forward (Vf) (Typ)    1.5V
Current - DC Forward (If) (Max)    20mA
Voltage - Supply    4.5 V ~ 5.5 V
Operating Temperature    -40°C ~ 85°C
Mounting Type    Surface Mount
Package / Case    6-SOIC (0.173", 4.40mm Width) 5 Leads
