HCPL2631

Giá: 21.000₫ Còn hàng

Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel 5kV/µs CMTI 8-MDIP

Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel 5kV/µs CMTI 8-MDIP,

Input Type DC

Output Type Open Collector

Current - Output / Channel 50mA

Data Rate 10Mbps

Propagation Delay tpLH / tpHL (Max) 75ns, 75ns

Rise / Fall Time (Typ) 50ns, 12ns

Voltage - Forward (Vf) (Typ) 1.4V

Current - DC Forward (If) (Max) 30mA

Voltage - Supply 4.5 V ~ 5.5 V

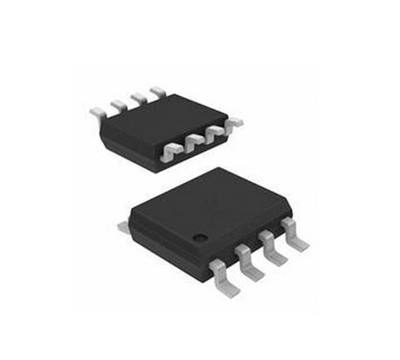

Package /  8-SMD, Gull Wing

​
data sheet

Ứng dụng sản phẩm
