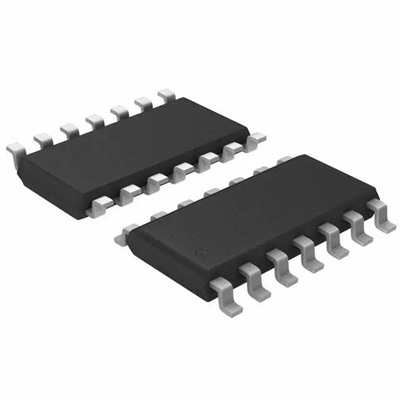

HEF4066BT,653

Giá: 2.500₫ Còn hàng

4 Circuit IC Switch 1:1 155 Ohm 14-SO


4 Circuit IC Switch 1:1 155 Ohm 14-SO
Multiplexer/Demultiplexer Circuit    1:1
Number of Circuits    4
On-State Resistance (Max)    155 Ohm
Channel-to-Channel Matching (ΔRon)    5 Ohm
Voltage - Supply, Single (V+)    3 V ~ 15 V
Voltage - Supply, Dual (V±)    -
Switch Time (Ton, Toff) (Max)    -
-3db Bandwidth    90MHz
Charge Injection    -
Channel Capacitance (CS(off), CD(off))    7.5pF
Current - Leakage (IS(off)) (Max)    200nA
Crosstalk    -50dB @ 1MHz
Operating Temperature    -40°C ~ 125°C (TA)
Package / Case    14-SOIC (0.154", 3.90mm Width)
