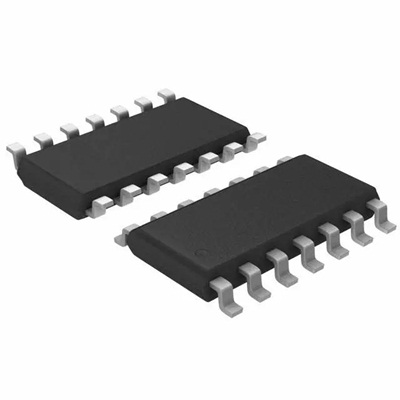

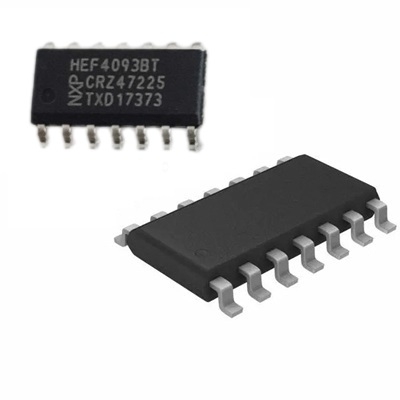

HEF4093BT

NAND Gate IC 4 Channel Schmitt Trigger 14-SO
Logic Type    NAND Gate
Number of Circuits    4
Number of Inputs    2
Features    Schmitt Trigger
Voltage - Supply    3 V ~ 15 V
Current - Quiescent (Max)    1µA
Current - Output High, Low    3.4mA, 3.4mA
Logic Level - Low    1.5 V ~ 4 V
Logic Level - High    3.5 V ~ 11 V
Max Propagation Delay @ V, Max CL    60ns @ 15V, 50pF
Operating Temperature    -40°C ~ 125°C
Mounting Type    Surface Mount
Supplier Device Package    14-SO
Package / Case    14-SOIC (0.154", 3.90mm Width)
