HTC-TECH Module HTC UNO R3 - G

Giá: 130.000₫ Còn hàng

HTC-TECH UNO R3  Microcontroller    ATmega328

Microcontroller: ATmega328 (DIP Package)
Operating Voltage: 5V
Input Voltage (recommended): 7 ~ 9V
Input Voltage (limits): 5 ~ 12V
Digital I/O Pins: 14 (of which 6 provide PWM output)
Analog Input Pins: 6
DC Current per I/O Pin: 40 mA
DC Current for 3.3V Pin: 50 mA
Flash Memory: 32 KB of which 2KB used by bootloader
SRAM: 2 KB (ATmega328)
EEPROM: 1 KB (ATmega328)
Clock Speed: 16 MHz
Size: 75 x54 x15 mm (2.95 x2.13 x0.59″)

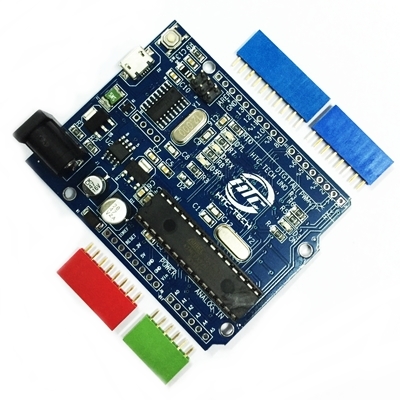

HTCduino Uno R3 from HTC-TECH is a physical world computing board of small size for academics or development . It is a simple microcontroller board fully compatible with Arduino UNO R3 and Arduino IDE open-source development environment. This environment implements the Processing / Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free(currently for Mac OS X, Windows, and Linux).

The cool thing about our new HTC-TECH microcontroller is that the headers use different colors to feature I/O ports of different types:
Red for Power Section.
Green for Analog I/O.
Blue for Digital I/O.


These colors match our sensor cables. This makes it really easy to figure out where to connect sensors, or to identify which side is Analog (blue) or Digital (green).

The HTCduino Uno is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
